Pre-Painted Steel Coils in Canada: Technical Performance, Standards, and Why Manufacturers Trust Armotrain
In Canada’s metal roofing and cladding industry, material selection is not simply about cost — it is about long-term performance under some of the most demanding environmental conditions in North America.
From freeze–thaw cycles in Ontario and Quebec to heavy snow loads in the Prairies and salt exposure in coastal British Columbia, roofing materials must perform consistently for decades. That is why high-quality pre-painted steel coils have become the preferred solution for Canadian roll-formers, roofing manufacturers, and architectural panel producers.
At Armotrain.ca, we supply premium pre-painted steel coils engineered specifically for Canadian climate categories, mechanical processing requirements, and B2B production stability.
This comprehensive guide explains:
- What defines high-quality pre-painted coils
- Substrate options (GI, GL, ZM)
- CSA / ASTM / EN standards relevant to Canada
- Coating systems and thickness breakdown (µm)
- Mechanical performance requirements
- What to evaluate when selecting a supplier
What Are Pre-Painted Steel Coils?

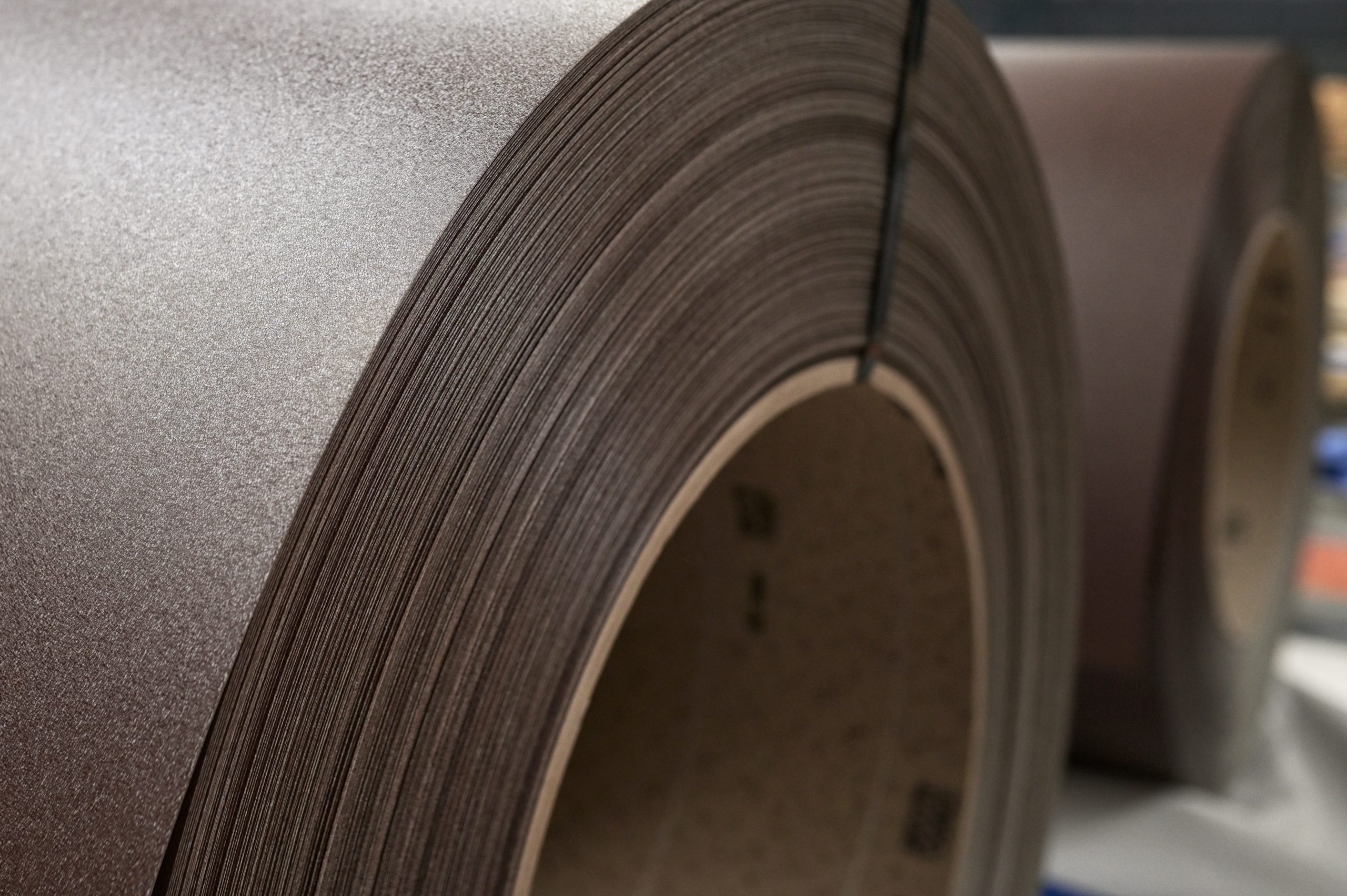

Pre-painted steel coils (also known as pre-painted coils) are metallic-coated steel sheets that receive a factory-applied multi-layer paint system before forming. Unlike post-painted products, coil coating ensures controlled curing conditions, uniform film thickness, and consistent adhesion.
The structure of high-performance pre-painted steel coils typically includes:
- Cold-rolled steel substrate
- Metallic coating (GI / GL / ZM)
- Chemical pretreatment
- Primer layer
- Topcoat (HDP, SMP, Polyester, or PVDF)
- Back coat protection
This layered system provides corrosion resistance, UV protection, flexibility during forming, and long-term color stability.
For manufacturers, the consistency of these layers directly affects forming behavior, cut-edge durability, and finished product warranties.
Substrate Selection: GI vs GL vs ZM
The metallic substrate defines the corrosion performance of pre-painted steel coils.
Galvanized Steel (GI)
- Zinc-coated substrate (e.g., Z275)
- Provides sacrificial corrosion protection
- Common for residential roofing systems
Galvalume Steel (GL)
- Aluminum-zinc alloy coating (e.g., AZ150~AZ185)
- Improved long-term corrosion resistance
- Better heat reflectivity
- Suitable for demanding climates
Zinc-Magnesium (ZM)
- Advanced alloy chemistry
- Enhanced cut-edge protection
- Improved corrosion performance at lower coating mass
For Canadian exposure categories (urban, rural, coastal, industrial), substrate selection must align with environmental risk levels. Using insufficient coating mass can significantly reduce system longevity.
Armotrain supplies pre-painted steel coils based on carefully selected substrates engineered for Canadian environmental performance.
CSA and ASTM Standards for Pre-Painted Steel Coils
Technical compliance is critical in Canada’s construction market.
Key CSA Standards
- CSA A653 – Zinc-coated steel sheet
- CSA A792 – Aluminum-zinc alloy coated sheet
- CSA G40.20 / G40.21 – Structural steel standards
Relevant ASTM Standards
- ASTM A653 / A653M (EN 10346) – Galvanized steel sheet
- ASTM A792 / A792M (EN 10346) – Aluminum-zinc coated sheet
- ASTM A755 / A755M (EN10169) – Painted steel sheet over metallic coating
- ASTM D523 – Gloss measurement
- ASTM D2244 – Color difference
- ASTM D4214 – Chalking resistance
High-quality pre-painted coils should meet ASTM A755 (EN10169) requirements for paint adhesion, bend performance, and impact resistance.
Armotrain works with mills producing material aligned with internationally recognized ASTM standards applicable to Canadian roofing manufacturing.
Coating Thickness (µm Breakdown)
Coating thickness significantly impacts durability and flexibility.
Typical Paint System Breakdown (Top Side)
| Layer | Typical Thickness (µm) |
| Topcoat (HDP / SMP / PVDF) | 15–25 µm |
| Primer | 5–7 µm |
| Back Coat | 7–15 µm |
Total Top Paint Film Thickness:
25–36 µm (depending on specification).
Metallic Coating Mass Examples:
- Z275 (GI) ≈ 275 g/m²
- AZ150 – AZ185 (GL) ≈ 150 g/m² – 185 g/m²
- ZM130–ZM175 depending on exposure category
Increasing coating thickness improves barrier protection but must be balanced with flexibility. Excessively rigid coatings may crack during roll-forming — a major risk in Canadian cold-temperature processing.
Armotrain ensures coating systems are optimized for both corrosion resistance and forming integrity.
Mechanical Performance Requirements for Roll-Forming.
Manufacturers processing pre-painted steel coils must evaluate mechanical consistency.
Typical performance ranges:
- Yield strength: 250–350 MPa
- Tensile strength: 300–550 MPa
- Elongation: sufficient for forming
- T-bend rating: typically 1T–2T
- Reverse impact resistance: compliant with ASTM A755 (EN10169)
During profiling into roofing panels, standing seam systems, or metal shingles, paint systems must withstand:
- Tight bending radii
- Continuous deformation
- Shearing and edge trimming
- Fastener stress concentration
Micro-cracking during forming can accelerate corrosion, particularly under snow retention and freeze–thaw cycling.
Armotrain selects pre-painted coils with stable mechanical properties to ensure predictable roll-forming performance.
Canadian Climate Considerations
Canada’s environmental conditions create cumulative stress:
- Temperature swings exceeding 60°C annually
- Heavy snow loads
- Ice dam formation
- Coastal salt spray
- UV exposure in Prairie regions
- Industrial atmospheric pollutants
For this reason, not all pre-painted steel coils perform equally over time. Substrate chemistry, paint adhesion, and coating consistency determine real-world durability.
Cut-edge corrosion is especially critical. Advanced metallic coatings (GL and ZM) provide improved resistance at exposed edges — a major advantage for roofing systems in Canadian climates.
Technical Specification Summary
| Parameter | Typical Roofing Range |
| Base Metal Thickness | 0.45–0.60 mm |
| Substrate | GI / GL / ZM |
| Metallic Coating | Z275 / AZ150 – AZ185 / ZM120–175 |
| Topcoat Type | HDP / SMP / Polyester / PVDF |
| Topcoat Thickness | 15–25 µm |
| Primer | 5–7 µm |
| Back Coat | 7–15 µm |
| Yield Strength | 250–350 MPa |
| Standard Compliance | ASTM A653 / A792 / A755 |
| Applications | Roofing, cladding, trim |
Final specifications depend on project requirements and exposure category.
What to Look for When Choosing a Supplier of Pre-Painted Steel Coils in Canada
Selecting a supplier goes beyond pricing.
Manufacturers should evaluate:
- ASTM compliance documentation
- Stable coating thickness control
- Consistent mechanical properties coil-to-coil
- Inventory availability
- Reliable delivery across Canada
- Technical support for substrate selection
Inconsistent pre-painted steel coils increase scrap rates, production downtime, and warranty exposure.
Why Professionals Choose Armotrain.ca
Armotrain operates as a dedicated B2B supplier of premium pre-painted steel coils for the Canadian market.
Our focus:
✔ Premium European-engineered material
✔ Substrates aligned with Canadian corrosion categories
✔ Stable coating thickness control
✔ Mechanical consistency for roll-forming
✔ Inventory-based supply model
✔ Reliable distribution across Canada
We understand the operational realities of Canadian roofing manufacturers — and supply pre-painted coils engineered for performance, predictability, and long-term durability.
Conclusion
In Canada’s metal roofing and cladding industry, selecting pre-painted steel coils is a technical decision that directly affects product lifespan, brand reputation, and manufacturing stability.
For roofing manufacturers and roll-forming companies, evaluating the following factors is essential for long-term performance:
• Substrate chemistry (GI, GL, or ZM)
• Coating thickness and paint system breakdown (µm)
• Compliance with CSA and ASTM standards
• Mechanical forming properties for roll-forming
• Supplier reliability and consistent material quality
Choosing the right pre-painted steel coil supplier in Canada helps ensure stable production, reduced scrap rates, and long-term corrosion resistance in demanding Canadian climate conditions.
If you are sourcing pre-painted steel coils for metal roofing or cladding manufacturing in Canada, Armotrain.ca supplies technically selected materials engineered for Canadian environmental exposure categories and industrial production requirements.
